Sonalert Alarm (CB24129E)

Details
Written by: Newton C. Braga

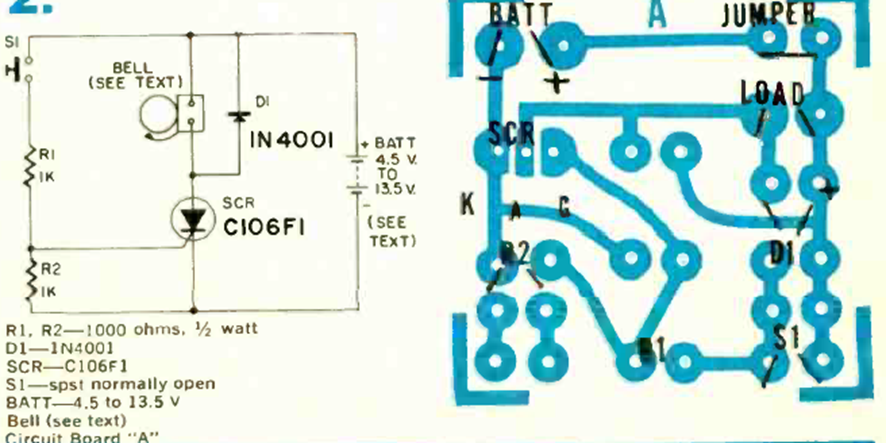

The sensor is S1 in this alarm that we found in a Radio Electronics magazine from May 1971. Several sensors can be used in series. The SCR supports equivalents from the 106 series.
