Automatic Reset Circuit for Infrared Control (CB24832E)

Details
Written by: Newton C. Braga

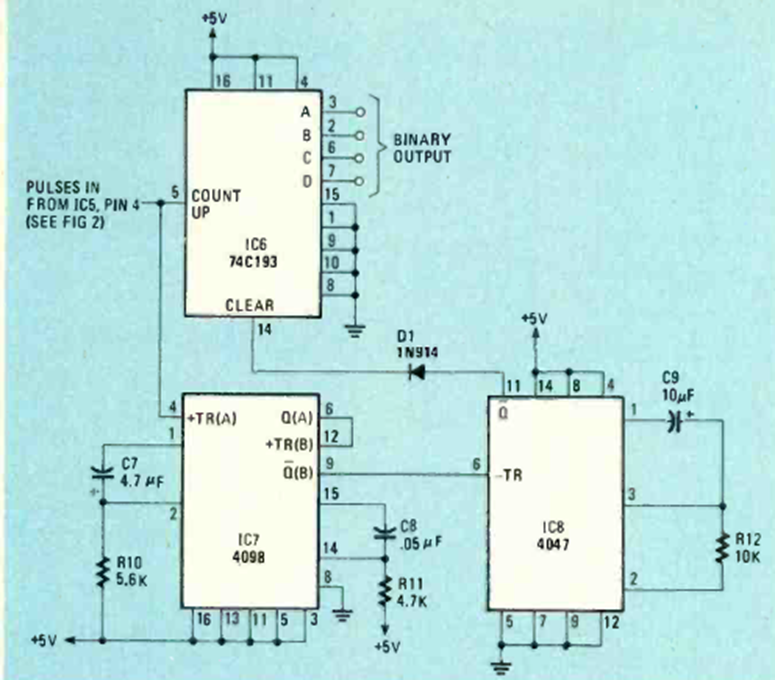

Working with the previous circuits, this circuit resets after 1 second. The circuit is from Radio Electronics magazine, August 1984. The time can be changed.
