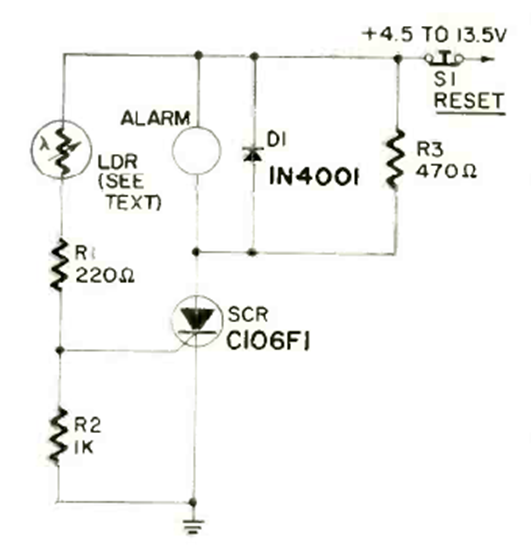

Found in an article in the August 1971 Radio Electronics magazine, this circuit supports sensitive equivalent SCRs of the 106 series. The sensor is an LDR, and the load can be a relay instead of the buzzer.
Light Alarm (CB24149E)
- Details
- Written by: Newton C. Braga
