Logical Proof (CB24399E)

Details
Written by: Newton C. Braga

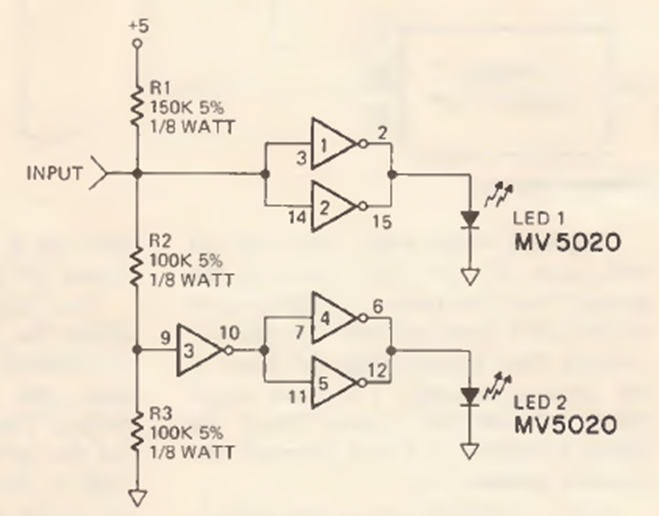

We found this simple circuit in December 1975 Radio Electronics magazine. The integrated circuit is the 4009 CMOS, and the circuit works in both TTL and CMOS depending on the power supply.
