Sequential Timer with LM3914 (CB24659E)

Details
Written by: Newton C. Braga

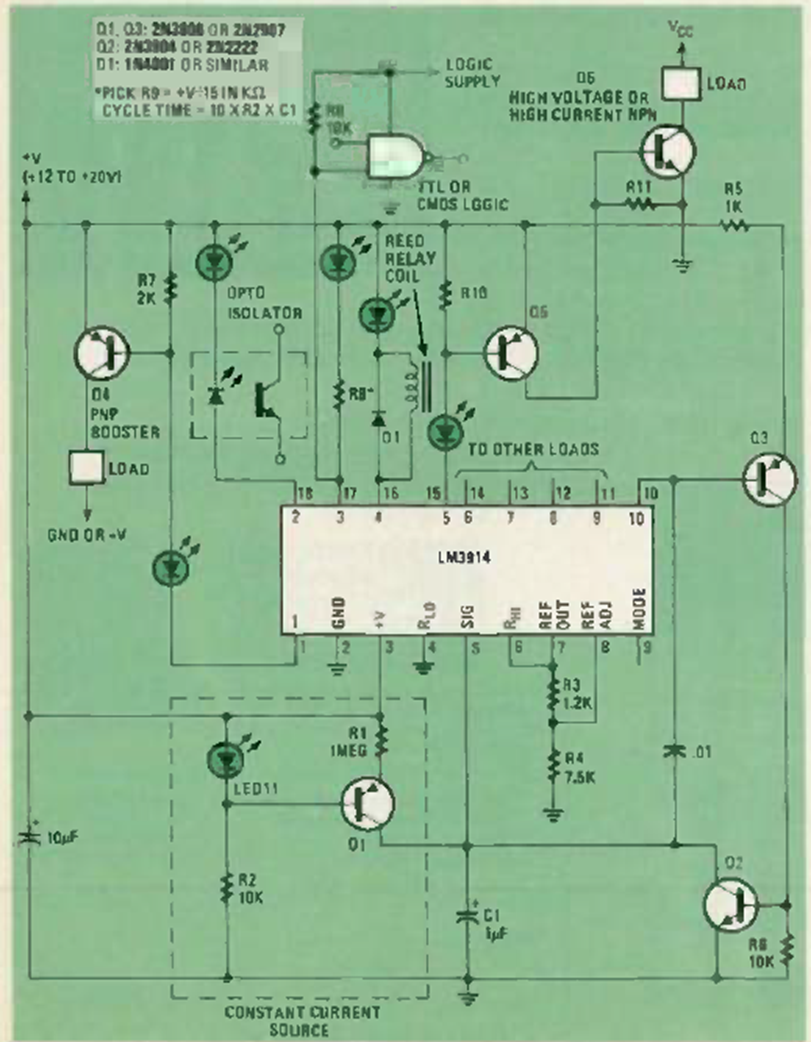

We found this circuit in the October 1980 issue of Radio Electronics magazine. The circuit uses general-purpose transistors driving a relay.
