Pass Monitor (CB24892E)

Details
Written by: Newton C. Braga

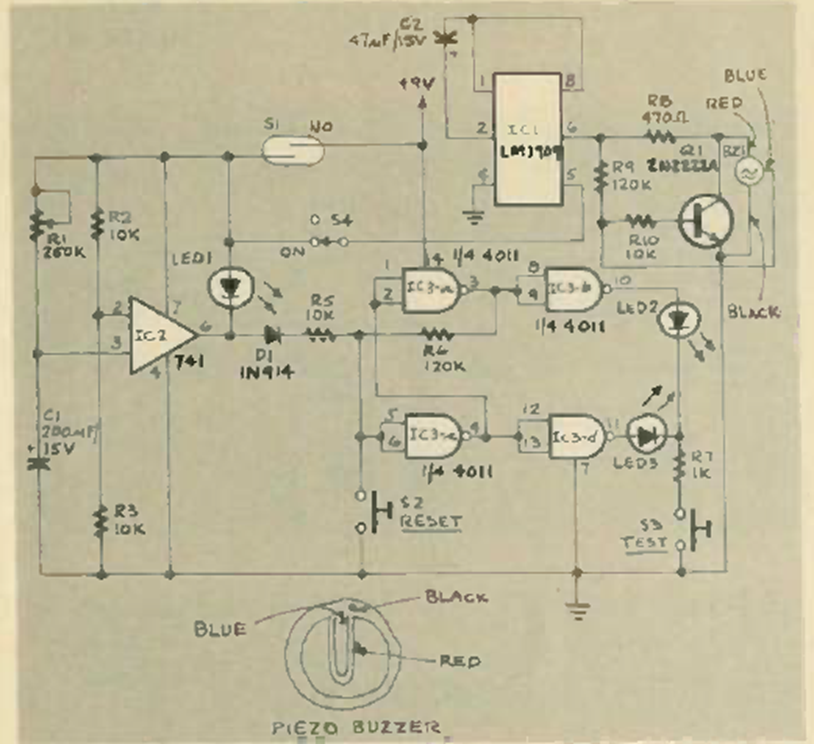

This circuit is from Radio Electronics from March 1985. The circuit uses common components at the time and LEDs as indicators. The power supply is 9V.
