Delta Electronic Ignition (CB24303E)

Details
Written by: Newton C. Braga

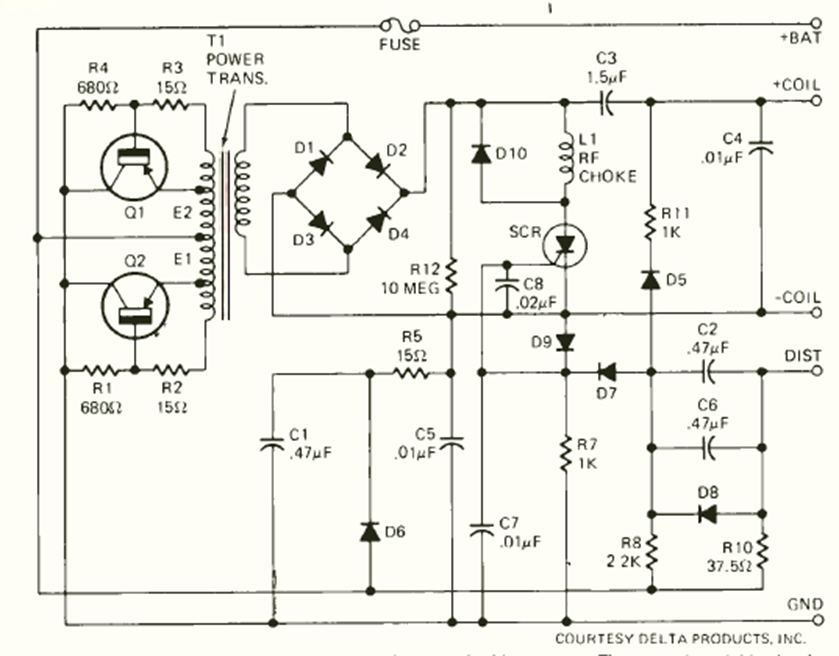

This circuit from Delta Products was published in the May 1974 Radio Electronics magazine. The circuit consists of a capacitive discharge ignition for 12 V vehicles.




| Clique na imagem para ampliar |
