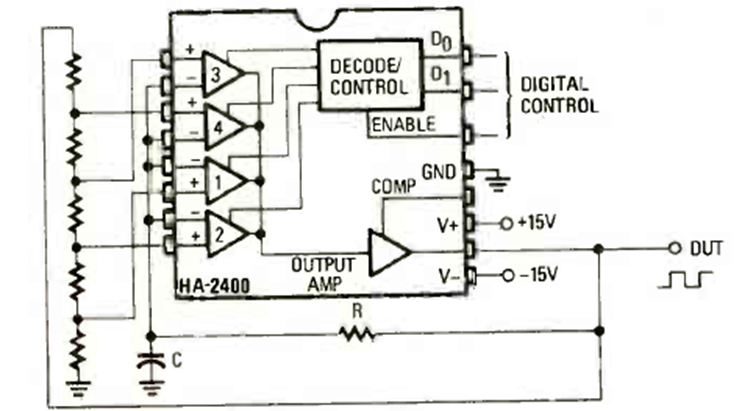

Using the HA2400 this circuit can generate signals of a few megahertz depending on R and C. The resistors form a stepped network and can all be 10k. The circuit is from Radio Electronics from March 1980.
| Clique na imagem para ampliar |
Astable Multivibrator (CB24628E)
- Details
- Written by: Newton C. Braga
