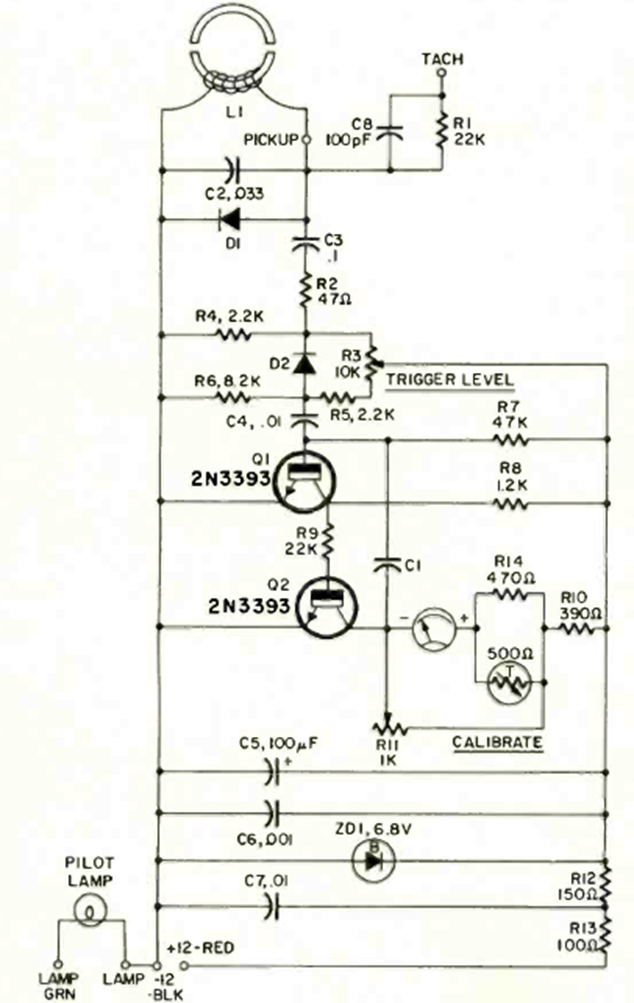

This circuit from the April 1972 issue of Radio Electronics magazine uses an inductive sensor. The circuit is intended for automotive applications and the indicator is a 1 mA full-scale milliammeter.
Tachometer (CB24185E)
- Details
- Written by: Newton C. Braga
