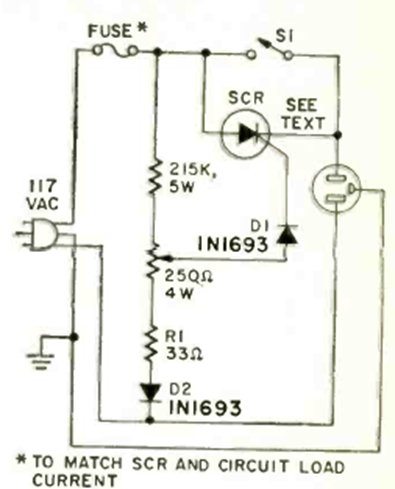

This circuit is from a Radio Electronics from February 1971. The SCR is load controlled and the circuit does not use a capacitor. The SCR must be equipped with a heat sink.
Power Control (CB24109E)
- Details
- Written by: Newton C. Braga
This circuit is from a Radio Electronics from February 1971. The SCR is load controlled and the circuit does not use a capacitor. The SCR must be equipped with a heat sink.
