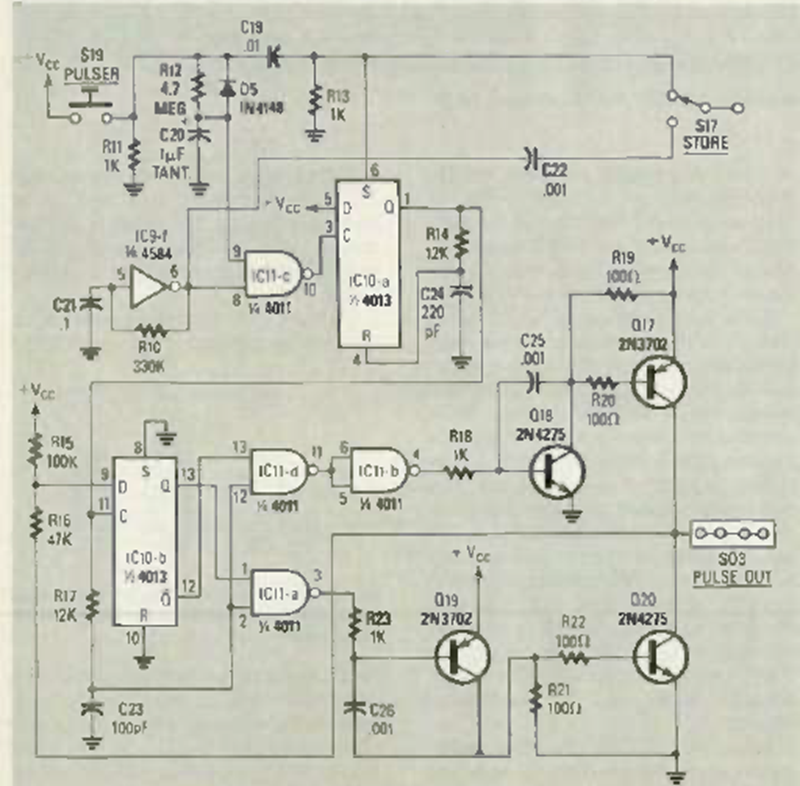

Pulse Generator (CB24910E)

Details
Written by: Newton C. Braga



This circuit is part of an integrated circuit tester published in an article in Radio Electronics magazine in September 1985. The circuit is powered by a 9 to 12 V source.
