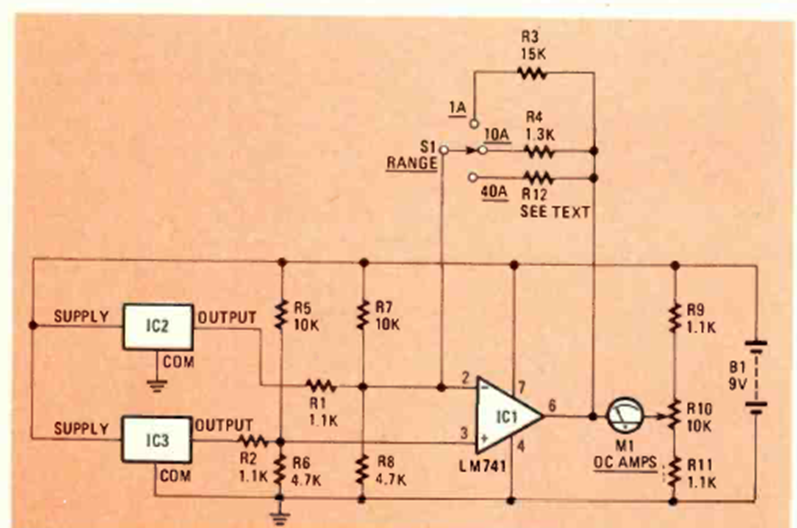

The circuit in the figure uses hall sensors to obtain the current measurement through the magnetic field. The circuit is from Radio Electronics from July 1984. The power supply is provided by a 9 V battery.
| Clique na imagem para ampliar |
Clamp-on ammeter (CB24814E)
- Details
- Written by: Newton C. Braga
