Variable Sound Doorbell (CB24779E)

Details
Written by: Newton C. Braga

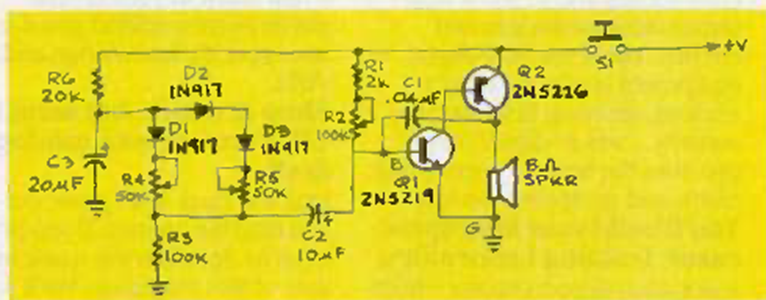

This special effect doorbell circuit was found in the January 1984 issue of Radio Electronics magazine. The components are quite common and transistors such as the BC548 and BC558 can be used.




| Clique na imagem para ampliar |
