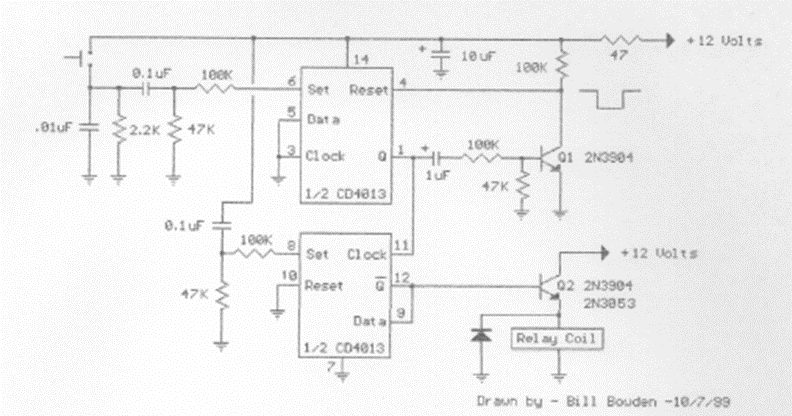

This circuit was found in documentation from the 90s, using components from that time. The integrated circuits are COMOS 4013, and the power supply must be provided with the voltage appropriate to the application.
| Clique na imagem para ampliar |
Flip Flop Toggle (CB24436E)
- Details
- Written by: Newton C. Braga
