Inverter for the car (CB26215E)

Details
Written by: Newton C. Braga

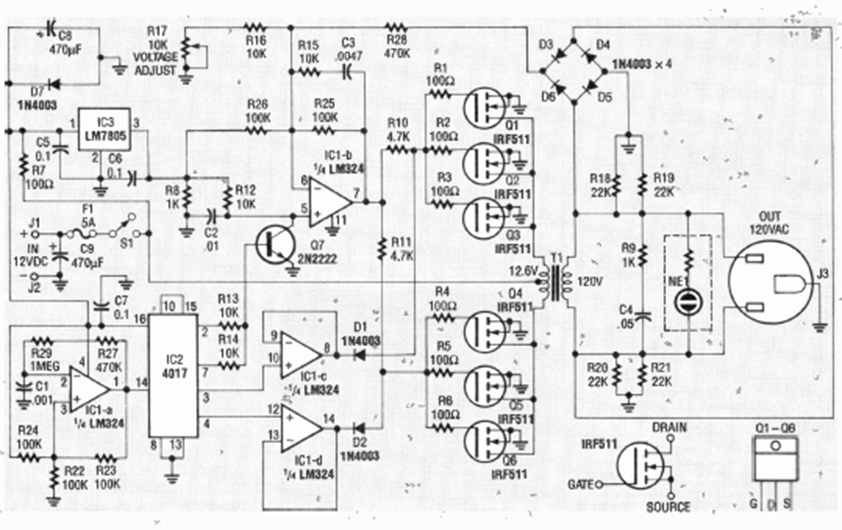

This circuit converts 12 V to 127Vac to power small electronics in the car. It was found in the 1993 edition of the Electronics Experimenter Handbook.




| Clique na imagem para ampliar |
