Smoke Alarm (CB26163E)

Details
Written by: Newton C. Braga

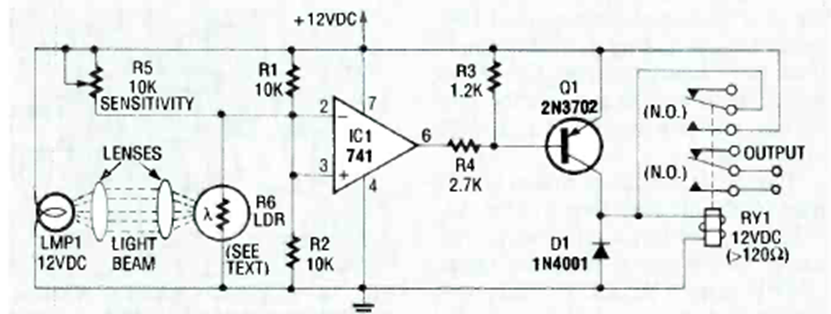

This circuit detects smoke by changing the light falling on the sensor. The circuit was found in the Electronics Experimenter's Handbook of 1991. Optical devices must be used.
