Light Activated Alarm with Latch (CB26239E)

Details
Written by: Newton C. Braga

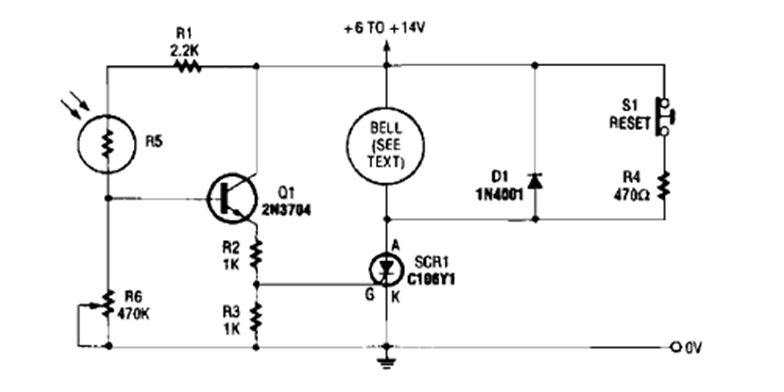

We found this circuit that triggers an SCR in the Encyclopedia of Electronic Circuits volume 5 of 1995. The circuit is powered by voltage according to the warning load.
