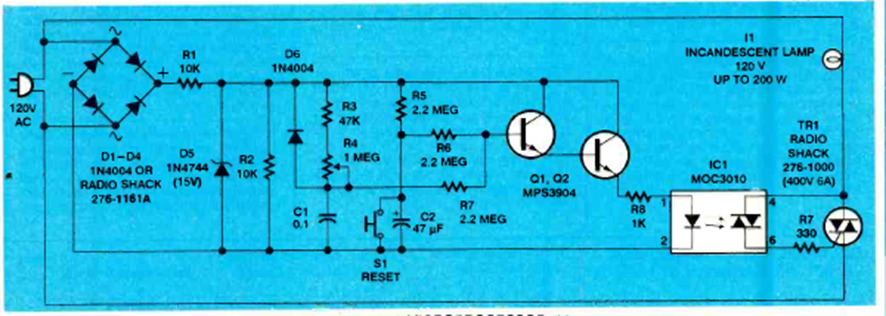

Twilight Simulator (CB26055E)

This circuit simulates dusk by slowly dimming an incandescent bulb. It was found in the August 1998 issue of Electronics Now magazine.

| Clique na imagem para ampliar |
