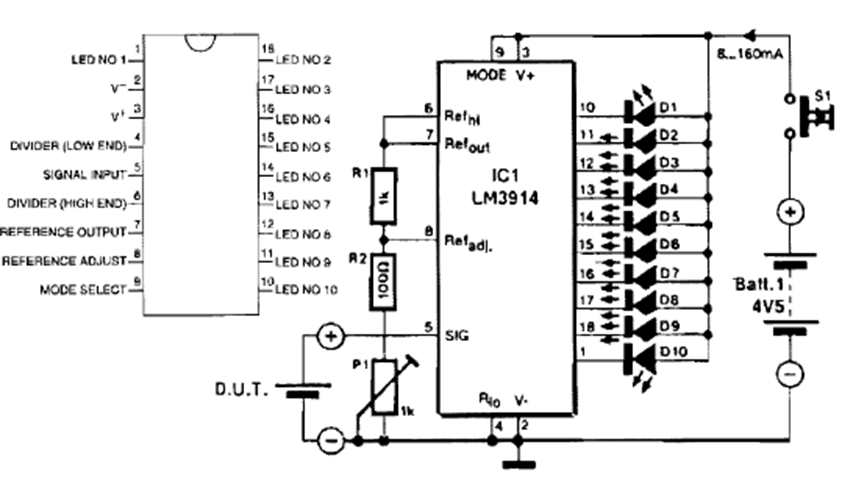

Found in an issue of Elektor magazine in the 90s, this battery tester is based on the LM3914. The circuit is powered by 3 batteries. The maximum voltage of the battery under test must not exceed this value.
| Clique na imagem para ampliar |
Bargraph Battery Tester (CB26313E)
- Details
- Written by: Newton C. Braga
