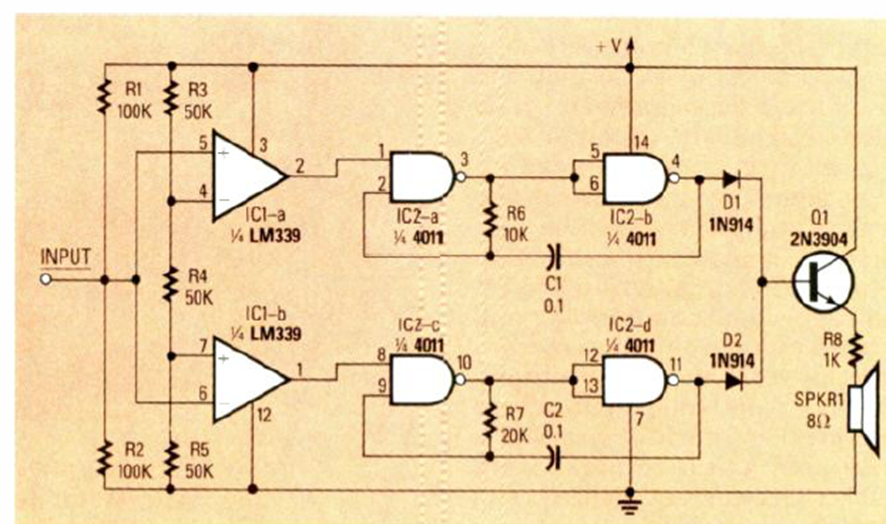

This circuit was found in the August 1987 issue of Radio Electronics magazine. It was implemented with CMOS logic and can be used in both TTL and CMOS circuits. Power is supplied by the circuit under test.
| Clique na imagem para ampliar |
Audible Logic Test (CB25058E)
- Details
- Written by: Newton C. Braga
