Variac (CB26034E)

Details
Written by: Newton C. Braga

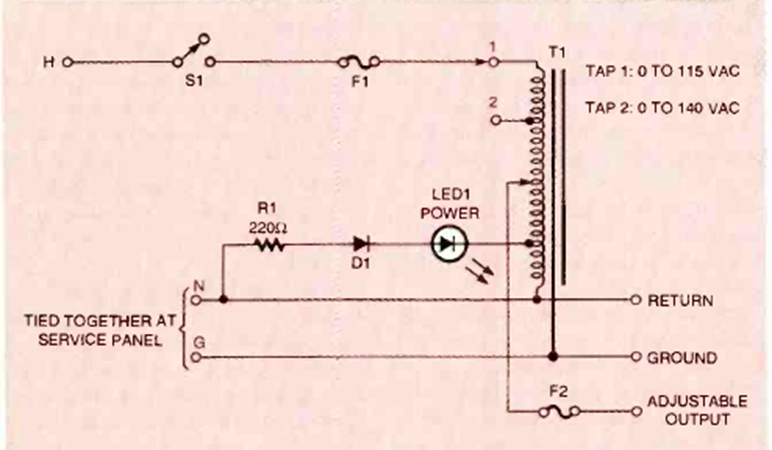

The figure shows a typical circuit of a variac with a special transformer with sliding adjustment of the winding turns. The circuit is from an Electronics Now magazine from December 1997.
