LED photosensor (CB24451E)

Details
Written by: Newton C. Braga

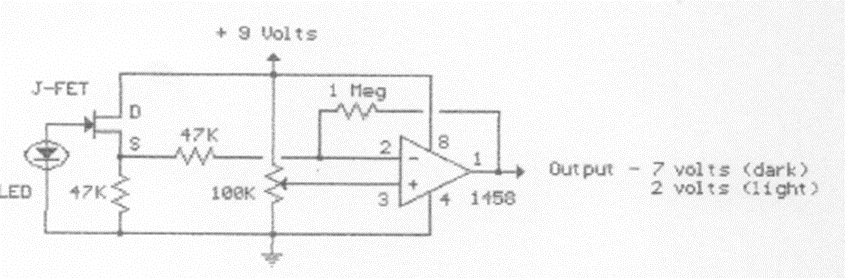

This circuit that we found in a 1990 documentation uses an LED as a sensor. The operational amplifier is equivalent to the 741 and the trigger adjustment is made in the potentiometer.
