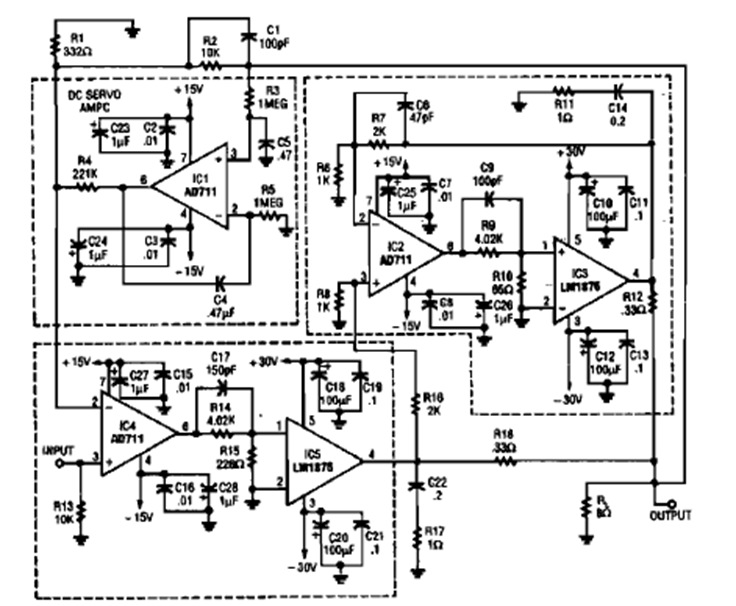

40W Amplifier LM1876 (CB26265E)

Details
Written by: Newton C. Braga



This circuit is from an Electronics Now from the 90s. The circuit uses a power integrated circuit from the time that must be equipped with a heatsink. The power supply is 18 V.
