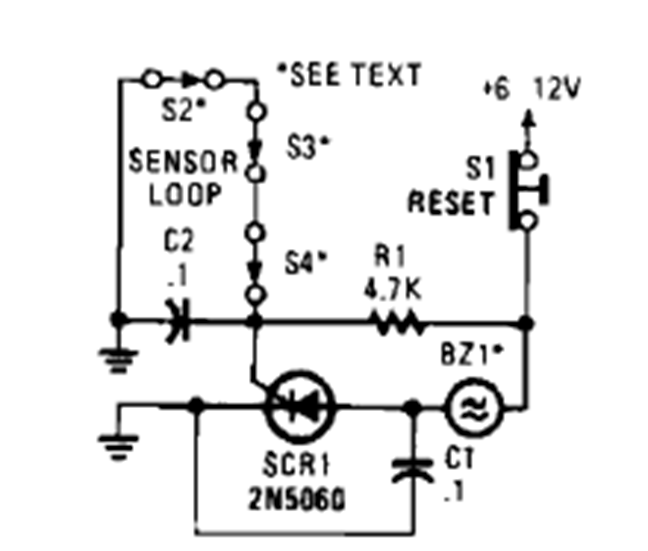

This circuit without sensors in series triggering an SCR was found in volume 5 of the 1995 Encyclopedia of Electronic Circuits. The circuit can have the number of sensors changed.
| Clique na imagem para ampliar |
Closed Loop Alarm (CB26227E)
- Details
- Written by: Newton C. Braga
