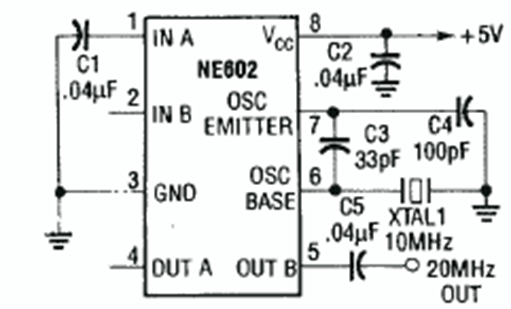

This circuit generates a 20 MHz sinusoidal signal from a 10 MHz crystal. It is found in the 1992 edition of the Electronics Experimenter Handbook. The circuit uses a single integrated circuit of the time.
Frequency Doubler (CB26177E)
- Details
- Written by: Newton C. Braga
