Battery Monitor (CB25098E)

Details
Written by: Newton C. Braga

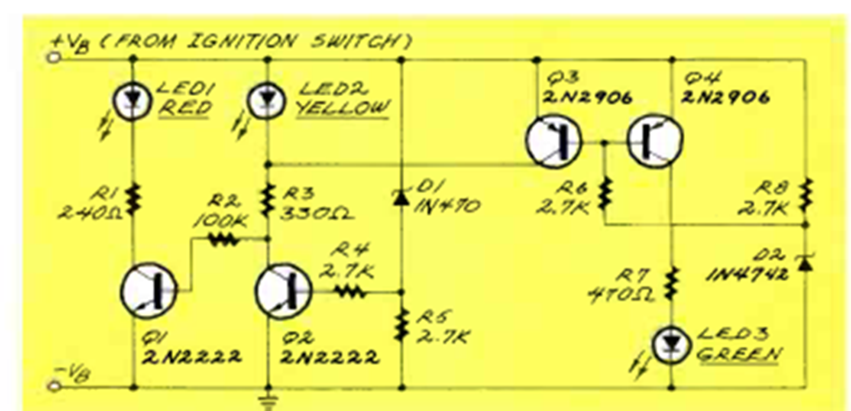

This car battery monitor was featured in the January 1988 issue of Radio Electronics magazine. The circuit uses common transistors and has 3 levels of indication made with common LEDs.
