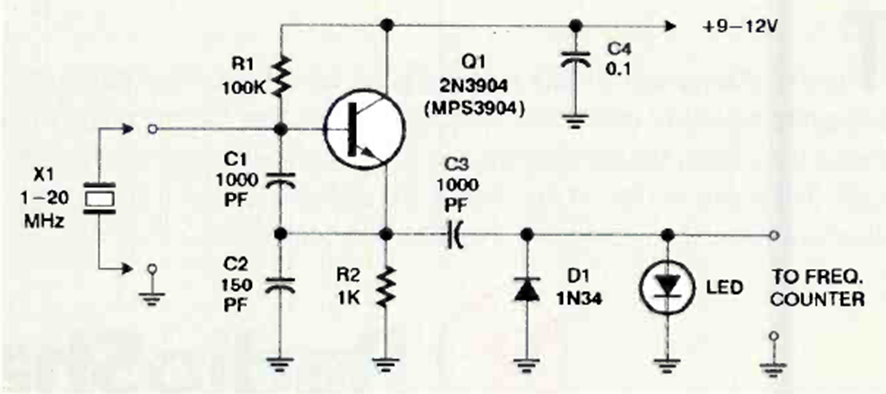

This circuit can be used to test crystals from 1 to 20 MHz and also has an output to measure their frequency. We found it in the November 1998 Electronics Now magazine.
