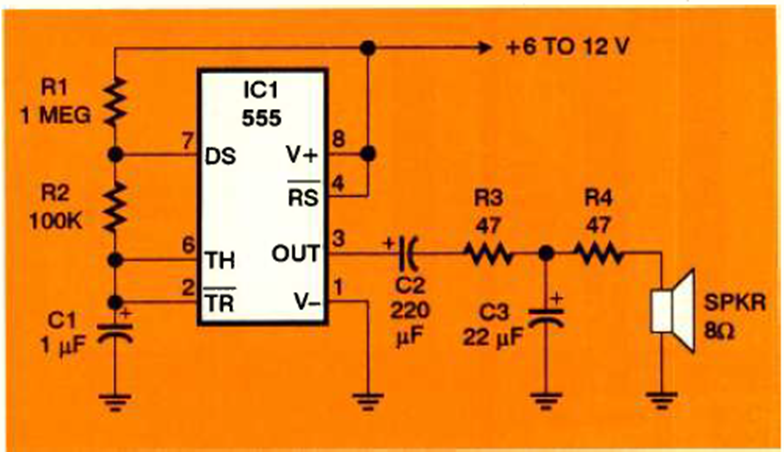

This circuit mimics the heartbeat with the softest sound played through a small speaker. The circuit is from an Electronics Now issue of January 1997.
| Clique na imagem para ampliar |
Heartbeat generator 555 (CB25992E)
- Details
- Written by: Newton C. Braga
