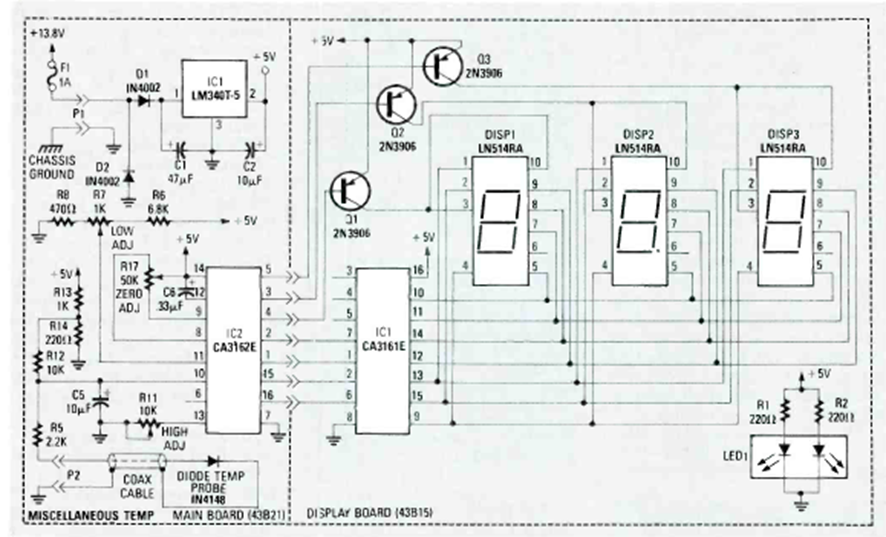

This circuit measures the temperature through the voltage drop across a diode. The circuit was found in the magazine Radio Electronics Experimenter from 1992. The circuit is digital with 2 digits.
| Clique na imagem para ampliar |
Temperature meter with diode sensor (Cb26174E)
- Details
- Written by: Newton C. Braga
