Electronics Dice 4017 (CB26047E)

Details
Written by: Newton C. Braga

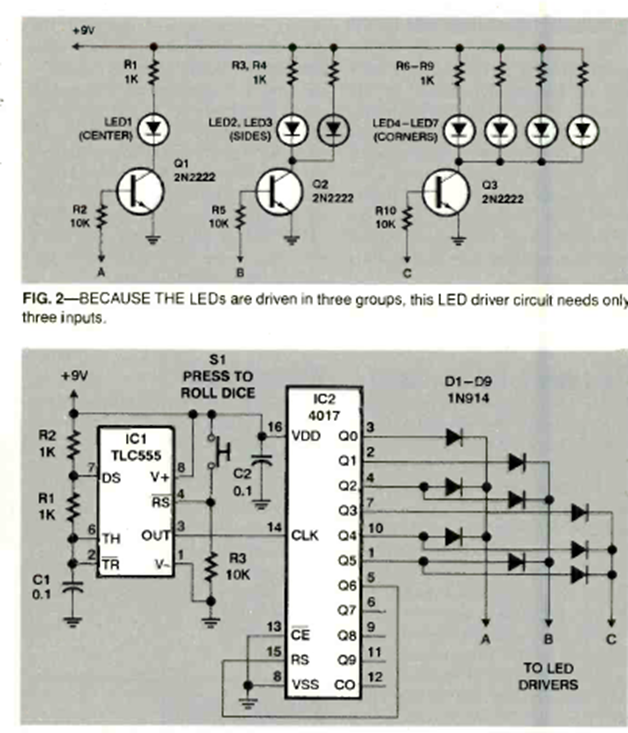

This circuit was found in the May 1998 issue of Electronics Now magazine. The circuit drives a set of LEDs.
