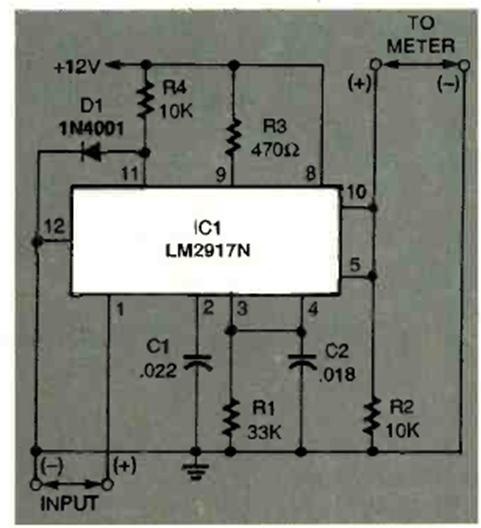

This circuit can measure frequencies up to 10 kHz using a digital multimeter or the 7107. The circuit is from an Eletrctronics now magazine from November 1996.
Measuring low frequencies (CB25989E)
- Details
- Written by: Newton C. Braga
This circuit can measure frequencies up to 10 kHz using a digital multimeter or the 7107. The circuit is from an Eletrctronics now magazine from November 1996.
