Automatic Car Headlight Light (CB26070E)

Details: Written by: Newton C. Braga

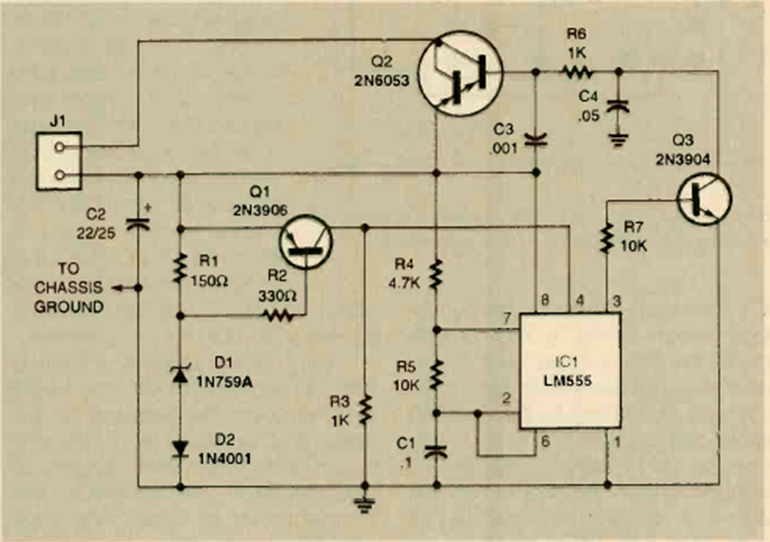

This circuit is used to turn on the headlights when it gets dark. The circuit is from an Electronics Now magazine from October 1998. The power transistor must be equipped with a heatsink.

| Clique na imagem para ampliar |
