Ammeter 7107 (CB25986E)
- Details
- Written by: Newton C. Braga

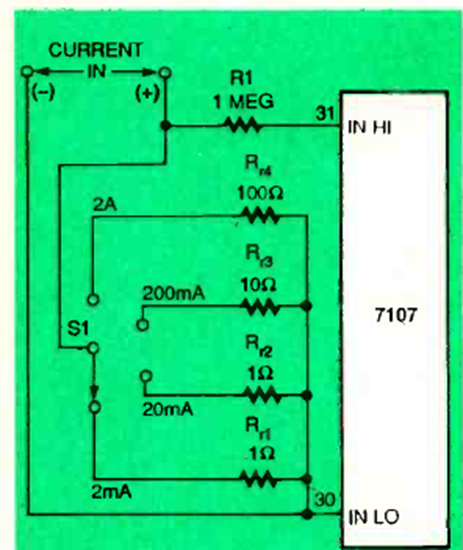

The figure shows how to measure current with a 3 ½ digit 7107 meter described in Electronics Now from November 1996. The basic way to connect the 7107 is in two previous circuits.
