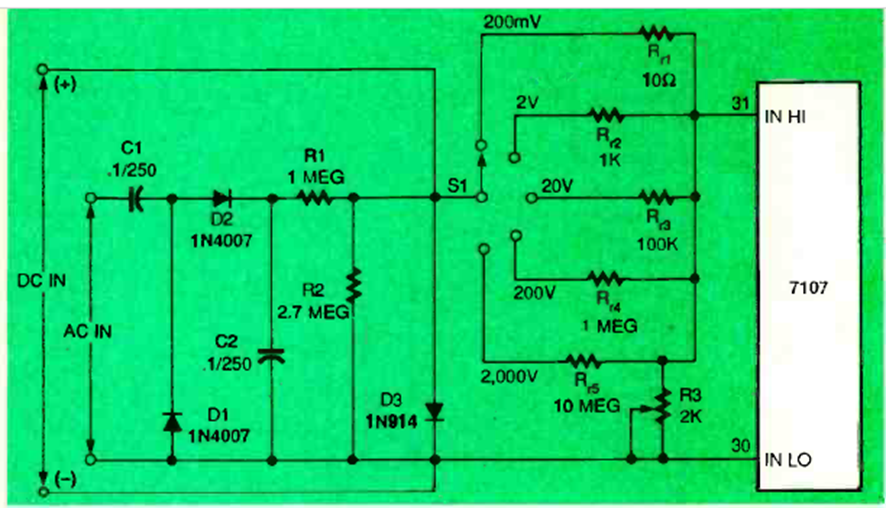

The figure shows the basic way to use a 7107, a 3 and ½ digit converter in a digital voltmeter. The way to use the 7107 in its basic configuration is in the previous circuit. The circuit is from an Electronics Now from November 1996.
