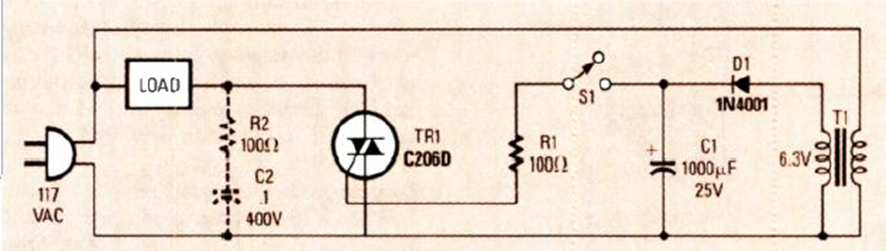

This control circuit using a low voltage switch was found in the September 1987 Radio Electronics magazine. The triac must be matched to the load and the mains voltage.
