Alternator Regulator (CB26296E)

Details
Written by: Newton C. Braga

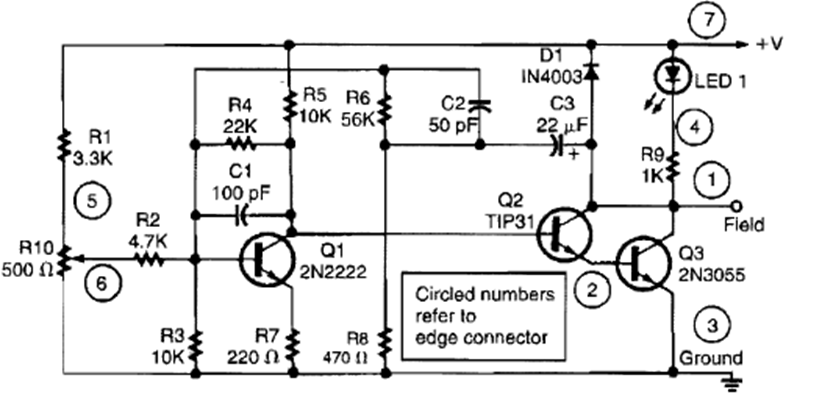

Found in a Radio Electronics store from the 90s, this circuit is for cars of that era. The circuit uses a 2N3055 that must be equipped with a heat sink.




| Clique na imagem para ampliar |
