Solar radio (CIR21939E)

Details
Written by: Newton C. Braga

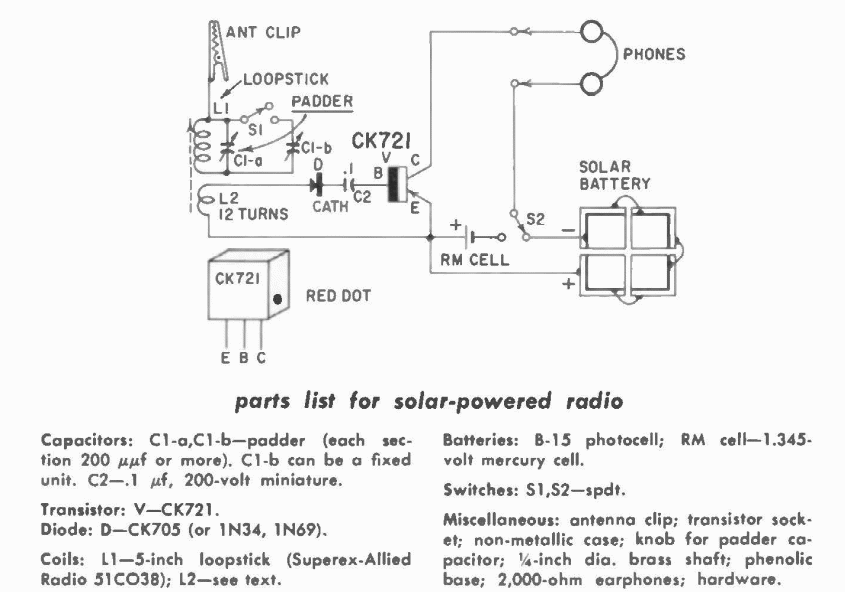

This primitive solar radio was found in a Gernsback publication from 1960. The transistor is made of germanium of the time and the earphone is magnetic with high impedance.




| Clique na imagem para ampliar |
