Switch Simulator (CB26067E)

Details
Written by: Newton C. Braga

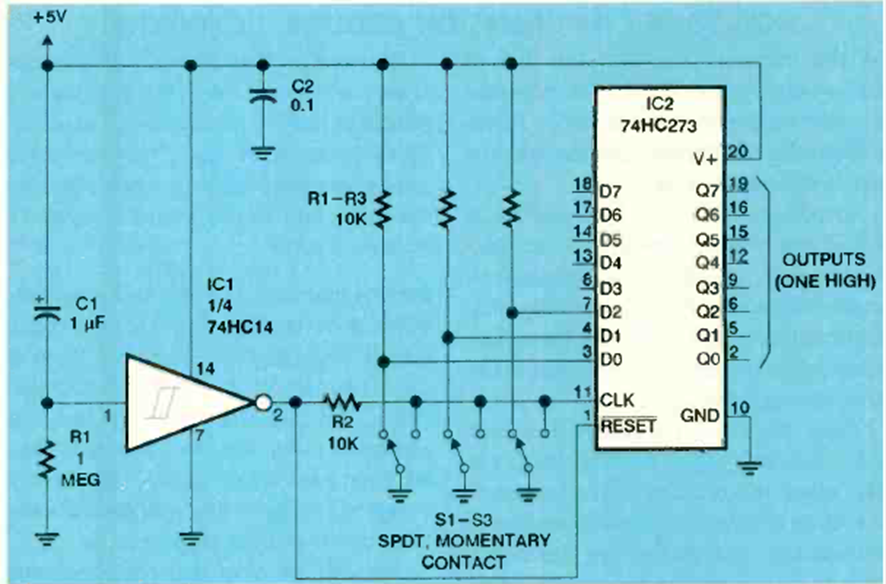

This circuit simulates a multi-position switch using programming buttons. The circuit is from an Electroics Now magazine from September 1998.
