Electronic doorbell (CB25029E)

Details
Written by: Newton C. Braga

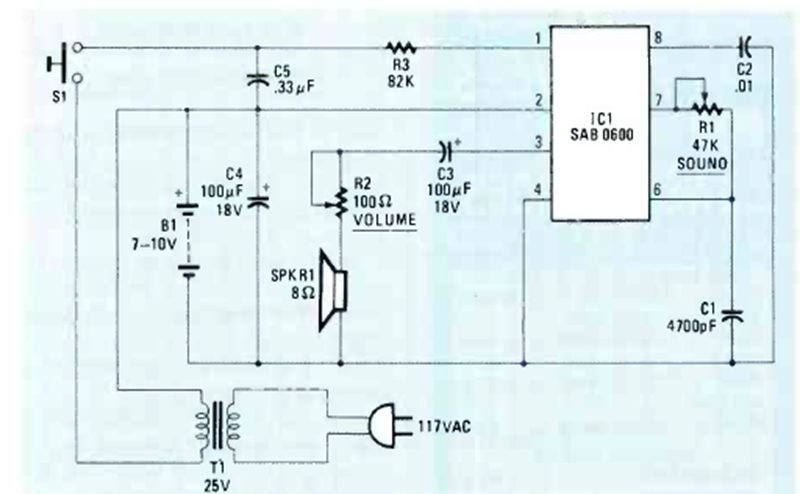

This circuit was found in the April 1984 issue of Radio Electronics magazine. The integrated circuit used is a type of time that already includes the power supply.
