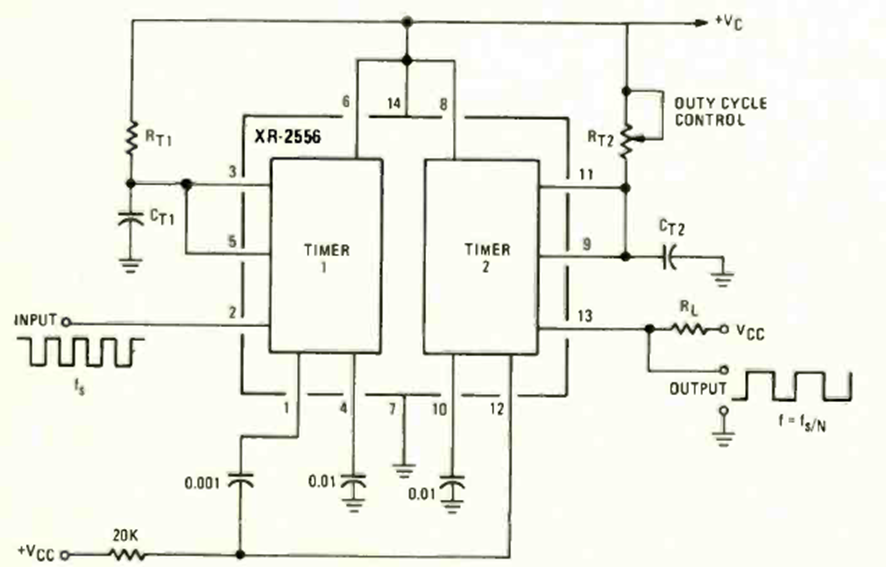

The signals are rectangular, and the components depend on the frequency of the signals. The circuit is from a Radio Electronics from September 1976. The power supply depends on the application and must be within the range allowed for the 555. The maximum frequency is approximately 500 kHz.
