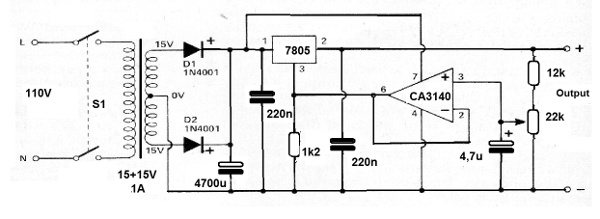

This adjustable source was found in a 1979 documentation, but all components are still common today. The integrated circuit must be mounted on a heat radiator and the transformer has a 1 A secondary. The output voltage is set to P1. The transformer must have a secondary 15 + 15 V with a 1 A current.
.
