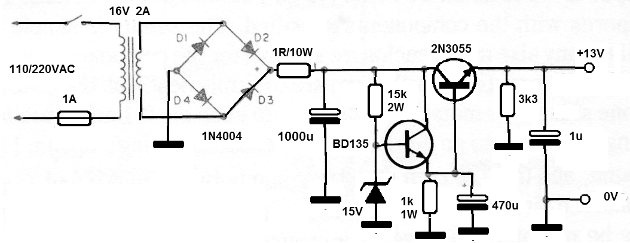

The circuit of this power supply was obtained in an American publication of 1982. We changed some components in order to make feasible the assembly in our days. Transistor 2N3055 must be mounted on a heatsink. The transformer has a secondary of 16 V x 2 A. The transformer has secondary of 16 V with a current of 2 A.
