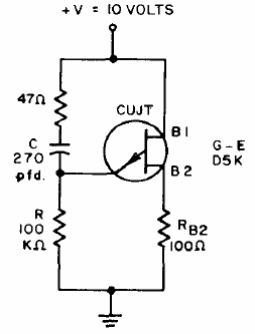

This circuit, from the 1977 GE semiconductor manual, uses a unijunction transistor beyond the conventional (CUJT), which can generate signals up to 50 kHz. Note the different type of this component. The transistor is an uncommon component currently.
