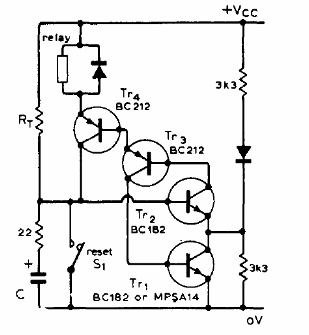

The transistors of this timing circuit may be more modern types such as BC548 and BC558. The circuit is from a 1979 technical documentation. The time obtained depends on the input RC constant. The relay can be 6 V or 12 V depending on the power used.
