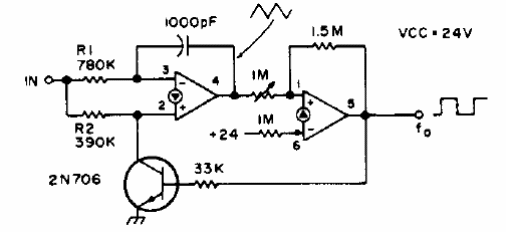

We found this circuit in a publication for radio amateurs of 1976. The operational amplifier is a transconductance type like the LM3900 and the power must be made with symmetrical power supply. The transistor can be the 2N2222. With the indicated components the circuit produces 400 Hz with 5 V input.
