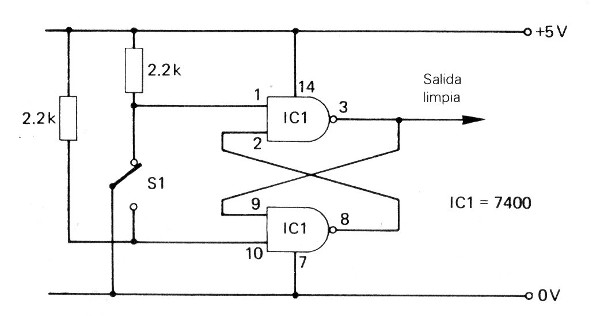

This circuit can be used as an input shield for microcontrollers or other TTL circuits. The power supply is made with a voltage of 5 V. Since the power consumption is low, the power supply of the microcontroller itself can be used. We found the circuit in an old Spanish documentation.
