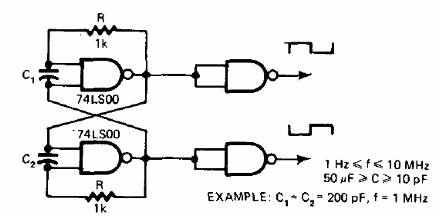

The frequency of this oscillator depends on the capacitors, being able cover the range between 1 Hz and 10 MHz. The power must be made with a 5 V source and the outputs are of rectangular signals. The circuit is from a 1978 technical documentation.
1 Hz to 10 MHz TTL Oscillator (CB1471E )
- Details
- Written by: Newton C. Braga
