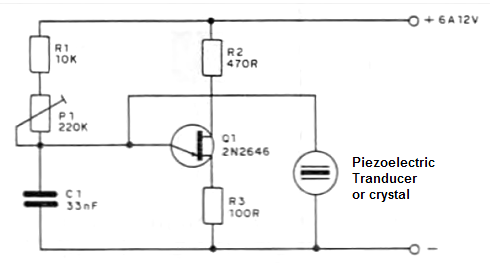

This circuit uses a piezoelectric transducer to produce sounds like a buzzer. Frequency is adjusted by P1 and the circuit can be powered from 6 to 12 V supplies. Current drain is very low allowing the use of cells as supply. Adjust P1 for the resonant frequency of the transducer for best results.
Mini-Buzzer
