Voltage Follower with the LF357 (CB3993E)

Details: Written by: INCB

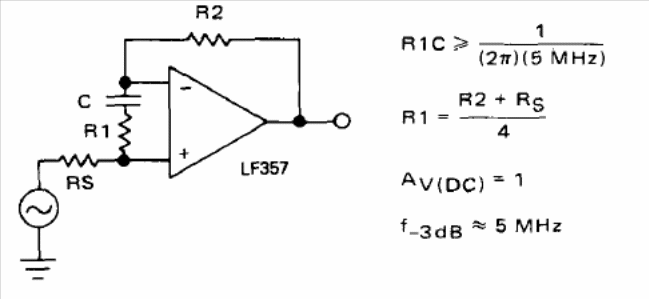

The circuit is of the Motorola Linear Databook of 1990. The power source must be symmetrical and the characteristics of the circuit are given next to the diagram.

| Clique na imagem para ampliar |
