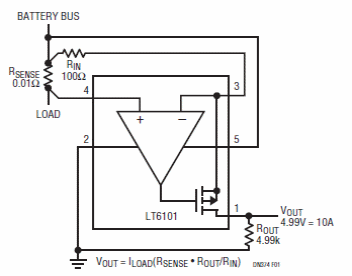

This circuit was obtained from the 2005 Linear Technology component manual itself. The output voltage is 4.9 V for a 10 A monitored current. Accuracy depends on the sensing resistor.
